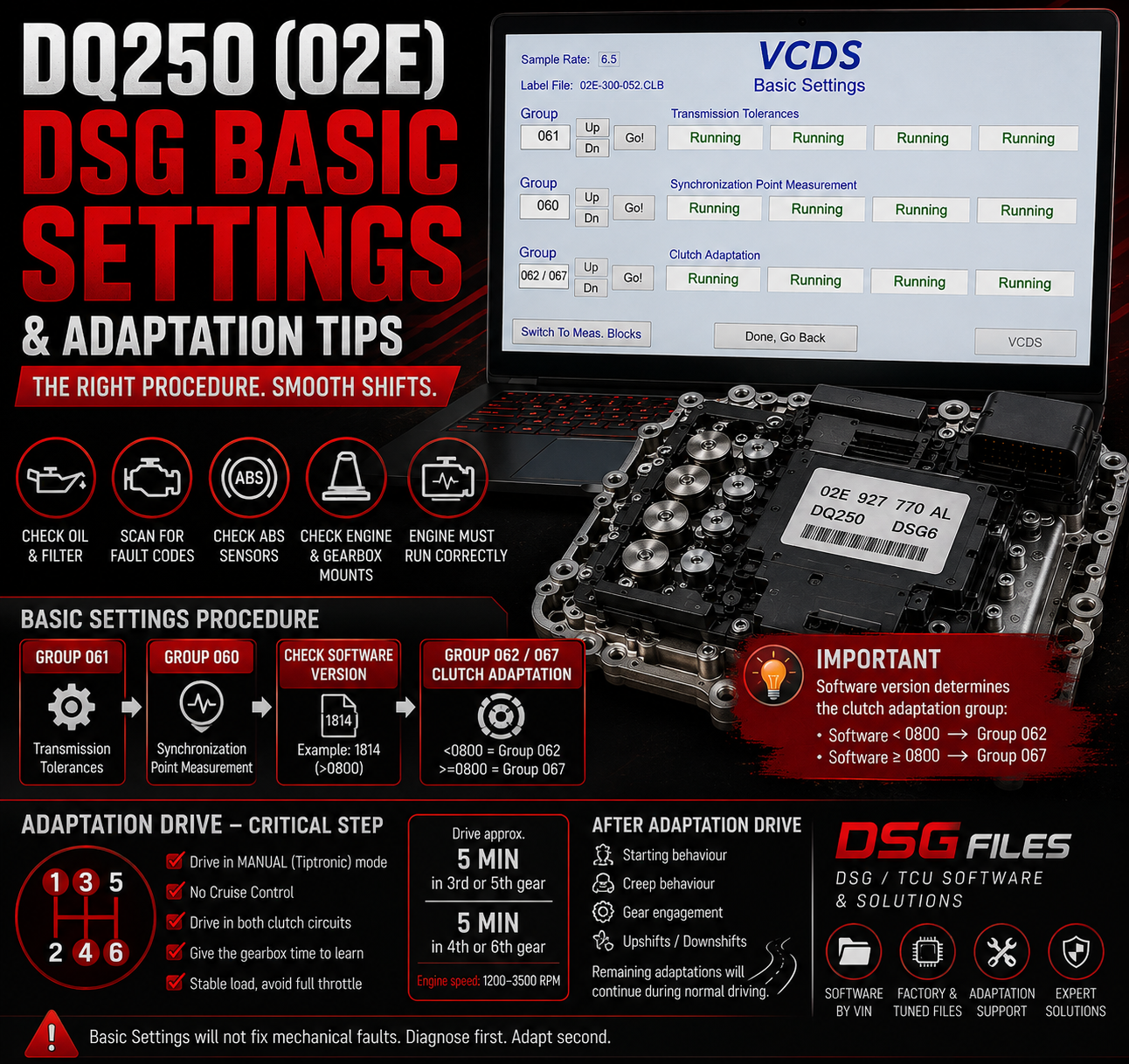

DQ250 (02E) DSG Basic Settings & Adaptation Tips
Is your DQ250 / 02E DSG6 suddenly shifting badly?
Maybe the shifts have become jerky, downshifts feel uncomfortable, engagement is no longer smooth, or the gearbox simply behaves differently than it used to.
It is very easy to immediately assume:
“My DSG mechatronic or clutch is defective.”
Sometimes that is true.
But not always.
Before replacing expensive parts, there are several things worth checking — and in the right circumstances, performing the DQ250 Basic Settings and clutch adaptation procedure can make a significant difference.
Before Performing DSG Basic Settings
Do not use Basic Settings as a universal "fix" for every DSG problem.
First make sure that the gearbox and the rest of the vehicle are mechanically and electrically healthy.
1. Check the DSG Oil and Filter
The DQ250 is a wet-clutch transmission and depends heavily on the correct oil condition, oil level and hydraulic pressure.
If the DSG oil service is overdue, start there.
Check:
-
DSG oil condition
-
Correct oil level
-
DSG oil filter
-
Oil leaks
-
Correct oil specification
Basic Settings will not repair a gearbox suffering from insufficient oil pressure or an incorrect oil level.
2. Check for Fault Codes
Perform a complete diagnostic scan before starting.
Check at minimum:
-
02 – Transmission
-
01 – Engine
-
03 – ABS/Brakes
Stored faults can provide important clues about why the gearbox is behaving incorrectly.
Do not simply erase everything and immediately perform adaptations without first understanding why the faults were stored.
3. Check the ABS / Wheel-Speed Sensors
This is easily overlooked.
The DSG controller receives vehicle-speed and wheel-speed information through the vehicle network.
Problems with an ABS wheel-speed sensor can therefore influence gearbox behaviour.
If one wheel-speed signal is incorrect or unstable, investigate that problem before blaming the DSG.
4. Make Sure the Engine Runs Correctly
The DSG and engine ECU work closely together.
During shifting, the gearbox requests torque intervention from the engine, and the TCU continuously relies on engine torque information.
Engine problems can therefore sometimes feel like gearbox problems.
Check for issues such as:
-
Misfires
-
Incorrect fueling
-
Ignition problems
-
Bad spark plugs or coils
-
Air or boost leaks
-
Fuel-pressure problems
-
Engine fault codes
-
Incorrect torque calculation
A gearbox cannot be expected to shift perfectly if the engine itself is not running correctly.
5. Check Engine and Gearbox Mounts
Worn mounts can make otherwise normal DSG engagement feel extremely harsh.
Check:
-
Engine mounts
-
Gearbox mount
-
Lower pendulum / dogbone mount
Excessive drivetrain movement during take-off, gear engagement or load changes can easily be mistaken for a clutch or mechatronic problem.
When Should DQ250 Basic Settings Be Performed?
Basic Settings may be appropriate after work such as:
-
Mechatronic replacement
-
DSG clutch replacement
-
Certain gearbox repairs
-
Software update or TCU replacement
-
Adaptation reset
-
Some cases of poor clutch engagement
-
Certain shift-quality problems after mechanical issues have been corrected
Basic Settings are not a repair procedure for damaged hardware.
If a clutch is mechanically worn, hydraulic pressure is incorrect, a solenoid is defective or the gearbox has an internal mechanical problem, resetting adaptations will not fix it.
DQ250 Basic Settings Prerequisites
Before starting, make sure the conditions are correct.
For the traditional 02E / DQ250 procedure, important prerequisites include:
-
DSG oil level must be correct
-
Transmission fluid temperature approximately 30–100°C
-
Selector lever in P
-
Engine running at idle
-
Brake pedal held during the procedure
-
Accelerator pedal not pressed
-
Cruise control switched OFF
Allow the engine to idle for at least a short period before beginning.
It is normal for the gearbox to make clicking, clacking and mechanical noises while Basic Settings are running.
Do not immediately stop the procedure because you hear the mechatronic operating.
DQ250 Basic Settings With VCDS
Enter:
[02 – Auto Trans / Transmission]
then:
[Basic Settings – 04]
The traditional DQ250 procedure uses several Basic Settings groups.
Group 061 – Transmission Tolerances
Run:
Group 061
Wait until the procedure has finished.
During this operation you will normally hear the gearbox/mechatronic operating.
Do not interrupt it unnecessarily.
Group 060 – Synchronization Point Measurement
Next run:
Group 060
Again, allow the procedure to complete fully before continuing.
Important: Check the DSG Software Version
This is one of the most important points from our original DQ250 Basic Settings article.
The clutch-adaptation Basic Settings group depends on the software version installed in the transmission controller.
You can see the software version in VCDS when opening the transmission controller.
For example, a controller may show software version:
1814
In this case the software version is greater than 0800.
Software version below 0800
Use:
Group 062
Software version 0800 or newer
Use:
Group 067
So:
Software < 0800 → Group 062
Software >= 0800 → Group 067
Do not blindly follow an old guide that tells every DQ250 owner to perform Group 062.
Later software uses Group 067 for clutch adaptation.
Additional Reset Groups
Depending on the work performed and the procedure required, the 02E controller also contains additional Basic Settings functions.
These include:
Group 068
Reset values for the clutch safety function
Group 065
Reset values for pressure adaptation
Group 063
Reset values related to steering-wheel paddle installation
Group 069
Reset values relating to ESP / Tiptronic cruise-control installation
Not every gearbox problem requires randomly resetting every available function.
Use the appropriate procedure for the work that has actually been performed.
After Basic Settings: The Adaptation Drive Is Important
Completing the Basic Settings while the vehicle is stationary is only part of the process.
The DSG still needs to learn clutch behaviour under actual driving conditions.
This part is often underestimated.
If you finish Basic Settings, drive 500 metres and decide that the gearbox is still bad, you may be judging it too early.
The clutch adaptations continue during the road test and normal driving.
DQ250 Defined Adaptation Drive
After successful Basic Settings, drive the vehicle in manual / Tiptronic mode.
Do not use cruise control.
Drive progressively through the gears up to 6th gear.
For clutch adaptation, spend time driving in both the odd and even gearsets.
Remember:
Clutch 1 operates one gearset
Primarily:
1st – 3rd – 5th
Clutch 2 operates the other gearset
Primarily:
2nd – 4th – 6th
The objective is to provide the transmission with stable operating conditions in which it can learn the clutch characteristics.
Practical Clutch Adaptation Tip
From our experience with these older DQ250 units, simply racing through every gear is not particularly useful.
Give the gearbox time in each clutch state.
For example:
-
Select an appropriate gear manually.
-
Maintain a relatively constant vehicle speed and accelerator position.
-
Allow the gearbox to remain in that gear for a period of time.
-
Change to a gear operating the opposite clutch.
-
Again maintain a stable load.
-
Repeat between odd and even gears.
A moderate engine-speed range is preferable.
There is no benefit in repeatedly performing full-throttle shifts while trying to teach the clutch its basic operating points.
The idea is to give the controller stable, repeatable conditions from which it can learn.
Current Recommended Adaptation Drive
For the 02E, the defined test drive generally calls for spending approximately:
-
5 minutes in 3rd or 5th gear
-
5 minutes in 4th or 6th gear
while maintaining an engine-speed window of approximately:
1200–3500 RPM
This ensures that both clutch circuits receive sufficient adaptation time.
Afterward, the procedure includes evaluating:
-
Starting behaviour
-
Creep behaviour
-
Gear engagement
-
Upshifts
-
Downshifts
The remaining adaptations will continue to develop during normal driving.
Don't Expect Instant Perfection
Immediately after resetting the adaptations, the gearbox may initially behave somewhat differently.
That does not automatically indicate a problem.
You have removed previously learned clutch and pressure corrections, and the TCU now has to learn them again.
Give the transmission a proper adaptation drive before judging the result.
When Basic Settings Will NOT Fix the Problem
Basic Settings cannot compensate indefinitely for mechanical defects.
If the DSG continues to exhibit problems such as:
-
Severe clutch slip
-
Strong shuddering
-
Delayed D or R engagement
-
Loss of gears
-
Hydraulic-pressure faults
-
Solenoid faults
-
Gear-selector faults
-
Mechanical noises
-
Persistent clutch adaptation limits
-
Repeated failed Basic Settings
then further diagnosis is required.
Possible causes can include:
-
Worn clutch pack
-
Mechatronic hydraulic problems
-
Faulty solenoids
-
Internal wiring or sensor faults
-
Incorrect DSG software
-
Mechanical gearbox damage
-
Incorrect oil level
-
Incorrect or incompatible replacement mechatronic
Software Can Also Affect Shift Behaviour
One additional point worth mentioning is the DSG software itself.
Over the life of the DQ250, Volkswagen Group released many different software revisions.
Older vehicles may still be running very early calibrations.
In some cases, poor behaviour may be related not only to learned adaptation values but also to:
-
Old factory software
-
Incorrect software after mechatronic replacement
-
Wrong software for the vehicle
-
Incorrect gearbox configuration
-
Poorly modified TCU software
Before replacing hardware, it can therefore also be useful to verify exactly which software is installed in the mechatronic.
Need Help Identifying Your DQ250 Software?
If you have a DQ250 that does not behave correctly after mechatronic replacement, software programming or gearbox repair, send us:
-
Vehicle VIN
-
TCU hardware number
-
Current software number/version
-
VCDS identification
-
Description of the work performed
DSGFILES can help identify whether the installed software is appropriate for the vehicle and provide the correct factory or modified DSG software when required.
